GRUBATEC AG Measurement & Control Technology

IoT system for monitoring humidity and temperature

Automated collection and intelligent analysis of real-time humidity and temperature data

IoT system for monitoring humidity and temperature

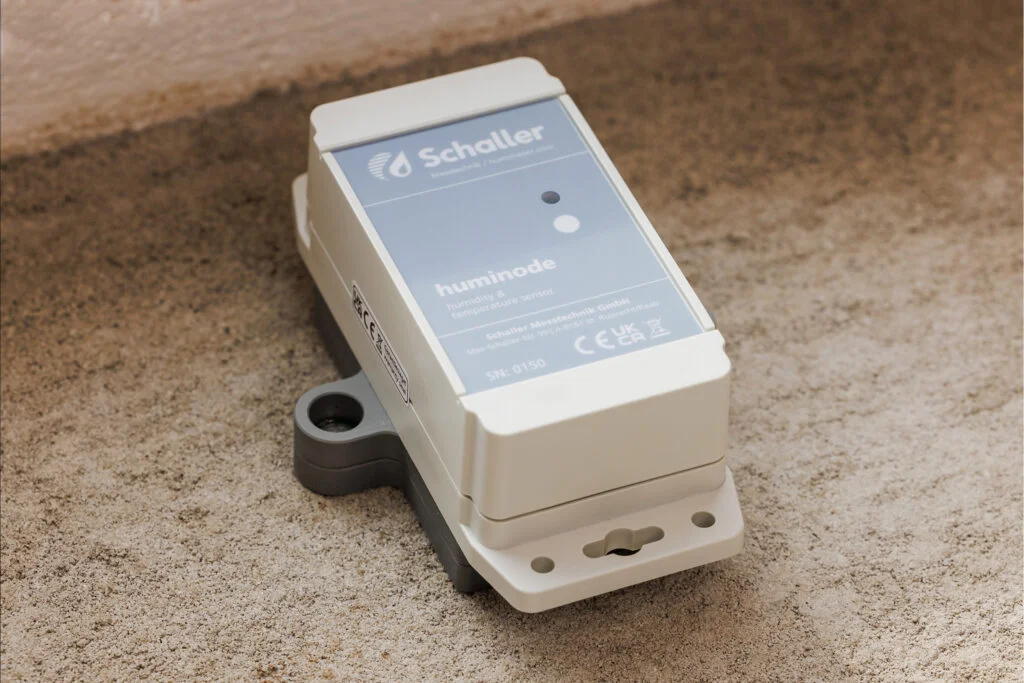

The huminode is a modern IoT solution for the continuous and automated measurement of humidity and temperature. It was specifically designed for applications where stable environmental conditions are critical and long-term monitoring is required—without any manual effort.

These compact, battery-powered sensors measure humidity, material moisture content, and temperature at user-defined intervals. This eliminates the need for time-consuming spot checks while ensuring continuous data collection.

Identify risks early on

The huminode system is suitable for a wide range of applications, including production facilities, warehouses, wooden structures, and sensitive building structures. Issues such as elevated humidity, mold growth, or material damage can be detected early on. This helps prevent costly consequential damage and enables more efficient process control.

Centralized real-time analysis

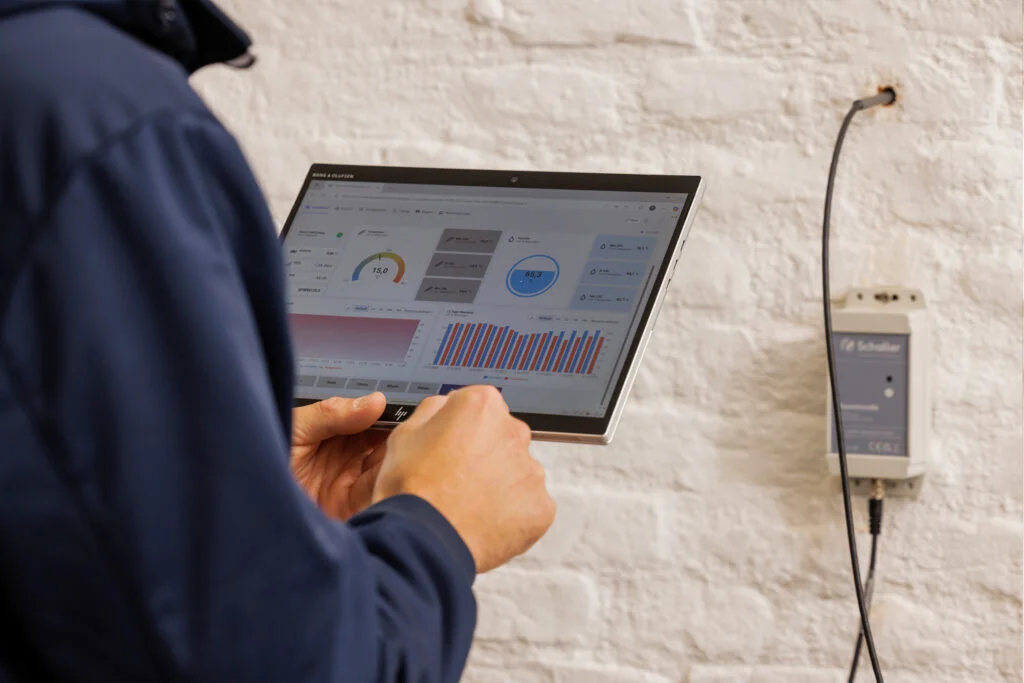

All measurement data is transmitted wirelessly to a central dashboard, where it is available in real time at any time. The platform offers a clear and intuitive display:

  • Real-time monitoring of all measurement values
  • Analysis of Trends and Time Series
  • Custom thresholds with automatic alarm functions

This transparent data analysis supports both quality assurance and documentation requirements.

Efficient and reliable technology

The system uses energy-efficient LoRaWAN technology, which was specifically designed for IoT applications, to transmit data. It offers significant advantages:

  • Long ranges spanning several kilometers
  • Very low power consumption for long battery life
  • High stability and secure, encrypted communication

This makes huminode ideal for long-term use—even in hard-to-reach or large areas.

Versatile for a variety of applications

Whether it’s climate monitoring, material analysis, or building management—huminode adapts flexibly to a variety of requirements. The combination of precision, reliability, and easy integration makes the system a future-proof solution for modern monitoring tasks.

Application area

Applications of IoT Monitoring Systems

IoT-based monitoring systems such as huminode offer a wide range of applications wherever humidity and temperature levels need to be reliably monitored. Through continuous data collection and automatic transmission, they enable efficient control of processes and environmental conditions.

Industry and Manufacturing

In production environments, IoT monitoring ensures stable conditions and consistent quality. Critical parameters can be monitored in real time, allowing deviations to be detected early and production downtime to be avoided.

Warehousing and Logistics

When storing sensitive goods such as food, raw materials, or technical materials, maintaining specific environmental conditions is critical. IoT systems ensure seamless monitoring and documentation throughout the entire supply chain.

Architecture and Construction

In the construction and building sector, IoT enables the monitoring of construction moisture, indoor climate, and structural conditions. Damage such as mold growth or material deterioration can be detected early and effectively prevented.

Wood and Material Applications

For wood, paper, textiles, and bulk goods, moisture content plays a key role in determining quality and enabling further processing. IoT solutions provide precise measurement data and help optimize drying and storage processes.

Environmental and Climate Monitoring

In environmental monitoring, agriculture, and research as well, IoT systems provide valuable data for analyzing climate and humidity conditions over long periods of time.

Thanks to their flexibility, scalability, and ease of integration, IoT monitoring systems are a future-proof solution for a wide range of applications—from industrial settings to building monitoring.

Performance features

Performance features

The huminode IoT monitoring system offers powerful features that enable reliable and efficient monitoring of humidity and temperature levels.

Continuous data collection

Automatic measurement of air humidity, material moisture content, and temperature at customizable intervals—for a comprehensive and accurate data set.

Wireless data transmission

Secure and energy-efficient communication via LoRaWAN technology—ideal for long ranges and hard-to-reach areas.

Real-time data access

All measurement data is available at all times via a central dashboard and can be accessed from anywhere.

Smart analytics

Visualization of trends and time series, as well as simple analysis of historical data to support informed decision-making.

Customizable alarm functions

Flexible threshold definition with automatic notifications in case of deviations—for a quick response to critical conditions.

High energy efficiency

Optimized power consumption for long battery life and minimal maintenance.

Versatile applications

Suitable for a wide range of applications in industry, construction, warehousing, and material monitoring.

Easy integration

Quick setup and seamless integration into existing systems and processes.

Your advantages

Your advantages

With the huminode IoT monitoring system, you benefit from a reliable, efficient, and future-proof solution for monitoring humidity and temperature.

Greater security

Early detection of critical changes such as increased moisture, mold growth, or material damage—before major problems arise.

Time and cost savings

Automated data collection replaces manual checks and significantly reduces maintenance and personnel costs.

Transparent data available at all times

Access to all measurement data in real time via a central dashboard—anytime, anywhere.

Higher process quality

Constant monitoring ensures stable conditions and helps maintain quality standards.

Easy to install and use

Quick setup without complicated wiring—ideal for existing facilities and buildings as well.

High flexibility

Adaptable to a wide range of applications in industry, construction, warehousing, and material monitoring.

Sustainable operations

Energy-efficient technology with long battery life reduces resource consumption and maintenance costs.

Future-proof technology

A modern IoT system with a scalable architecture—ready to meet growing demands and support digital processes.

Reliable data transmission with LoRaWAN

Reliable data transmission with LoRaWAN

For wireless communication, huminode relies on the proven LoRaWAN (Long Range Wide Area Network) technology. This wireless technology, developed specifically for IoT applications, enables energy-efficient, stable, and secure data transmission—even over long distances.

Thanks to their optimized energy consumption, the sensors have a particularly long service life and are ideal for continuous use without frequent maintenance or battery replacement.

Your benefits at a glance

  • Long ranges of several kilometers—even in challenging environments
  • Minimal energy consumption for maximum battery life
  • High reliability even inside buildings or in hard-to-reach areas
  • Secure data transmission using modern encryption technologies

Thanks to these features, LoRaWAN provides the perfect foundation for reliable IoT applications. The huminode system thus enables continuous monitoring without the need for complex cabling, while keeping maintenance requirements to a minimum.





External Sensors for huminode IoT RH

Product Photo Item No. / Description
Humidity and temperature sensor
12032

Humidity and temperature sensor

Includes a 2-meter connection cable and a plastic sensor cap.

Relative humidity: 0–100% RH

Accuracy: ± 2.0% relative humidity at 25 °C.

Temperature range: −20 to +85 °C.

Humidity and temperature sensor
12514

Humidity and temperature sensor

Compact sensor for monitoring humidity and temperature.

Relative humidity: 0–100% RH

Accuracy: ± 2.0% relative humidity at 25 °C.

Dimensions: Ø 12 × 70 mm.

LF_TB 120 Precision humidity temperature probe
12004

LF_TB 120 Precision humidity temperature probe

For measuring moisture and temperature in materials. Stainless steel tube with a sintered steel cap and a 2-meter connection cable.

Relative humidity: 0–100% RH

Accuracy: ± 1.5% relative humidity at 23 °C.

Pipe length: 300 mm.

LF_TB 120 with special tube length
14640

LF_TB 120 with special tube length

Precision humidity and temperature probes with customizable tube lengths for measurement points located at lower levels.

Relative humidity: 0–100% RH

Accuracy: ± 1.5% relative humidity at 23 °C.

Pipe length: 200–2,000 mm.





/* GRUBATEC – huminode IoT RH: Accessories (encapsulated, responsive) */
.gru-huminode-accessories{max-width:1120px;margin:30px auto;color:#253343;font-family:inherit}
.gru-huminode-accessories *, .gru-huminode-accessories *::before, .gru-huminode-accessories *::after{box-sizing:border-box}
.gru-huminode-accessories h2{font-size:clamp(23px,3vw,32px);line-height:1.2;color:#164c72;margin:0 0 12px}
.gru-huminode-accessories .gru-intro{font-size:16px;line-height:1.65;color:#536372;margin:0 0 24px}
.gru-huminode-accessories .gru-table-scroll{width:100%;overflow-x:auto;border:1px solid #dbe5ec;border-radius:12px;background:#fff}
.gru-huminode-accessories table{width:100%;border-collapse:collapse;font-size:14px;line-height:1.55;margin:0;table-layout:fixed}
.gru-huminode-accessories thead{background:#f2f7fa}
.gru-huminode-accessories th{padding:15px 14px;text-align:left;color:#174d72;font-size:13px;letter-spacing:.03em;font-weight:700;border-bottom:2px solid #cbdbe6}
.gru-huminode-accessories td{vertical-align:middle;padding:19px 14px;border-bottom:1px solid #e6edf1;background:#fff;overflow-wrap:anywhere}
.gru-huminode-accessories tbody tr:last-child td{border-bottom:0}
.gru-huminode-accessories .gru-product-image{width:100%;max-width:145px;aspect-ratio:1/1;object-fit:contain;display:block;margin:auto;background:#fff}
.gru-huminode-accessories .gru-sku{display:inline-block;border:1px solid #c6dce9;border-radius:6px;background:#eff6fa;color:#164c72;padding:4px 9px;font-weight:700;white-space:nowrap}
.gru-huminode-accessories .gru-name{font-size:16px;line-height:1.35;font-weight:700;color:#182f43;margin:0 0 7px}
.gru-huminode-accessories .gru-desc{color:#4f5f6d;margin:0}
.gru-huminode-accessories .gru-specs{margin:0;padding-left:17px}
.gru-huminode-accessories .gru-specs li{margin:0 0 5px;padding-left:0}
.gru-huminode-accessories .gru-specs li:last-child{margin-bottom:0}
@media(max-width:760px){
.gru-huminode-accessories .gru-table-scroll{overflow:visible;border:0;background:transparent}
.gru-huminode-accessories table,.gru-huminode-accessories tbody{display:block;width:100%}
.gru-huminode-accessories thead,.gru-huminode-accessories colgroup{display:none}
.gru-huminode-accessories tbody tr{display:block;background:#fff;border:1px solid #dbe5ec;border-radius:12px;overflow:hidden;margin-bottom:16px;box-shadow:0 3px 12px rgba(16,48,72,.04)}
.gru-huminode-accessories td{display:block;width:auto!important;border:0!important;padding:10px 18px}
.gru-huminode-accessories td:first-child{padding-top:18px}
.gru-huminode-accessories td:last-child{padding-bottom:19px}
.gru-huminode-accessories .gru-product-image{max-width:185px}
.gru-huminode-accessories td[data-label]:not(:first-child)::before{content:attr(data-label);display:block;font-size:11px;color:#637689;letter-spacing:.07em;text-transform:uppercase;font-weight:700;margin:0 0 5px}
}

Accessories for huminode IoT RH

Compatible accessories for continuous humidity and temperature monitoring: IoT gateways for various installation environments, an annual dashboard license, and a replacement battery.

Product Photo Item No. Accessories & Description Features / What's Included
huminode IoT Gateway Outdoor Version, Item No. 15181 15181

huminode IoT Gateway Outdoor Version

Outdoor gateway for transmitting measurement data from huminode sensors to the central dashboard. The outdoor version is suitable for stationary IoT measurement networks.

  • LTE-enabled model with antenna
  • PoE module with power cable
  • DC Connection Cable
  • Mounting Hooks and Mounting Kit
  • Sealing material
huminode Dashboard Annual License for One Sensor, Item No. 15182 15182

huminode Dashboard Annual License for One Sensor

Web-based annual license for displaying, analyzing, and documenting the measurement values recorded by a huminode sensor. The data can be clearly visualized and centrally managed.

  • License: 1 year for 1 sensor
  • Real-time visualization of measurement data
  • Organization Using Tags, Folders, and Filters
  • Customizable measurement intervals
  • Alert Functions and Automatic Reports
Replacement Lithium-Thionyl Chloride Battery, 3.6 V / 9000 mAh, Item No. 15184 15184

Replacement Lithium-Thionyl Chloride Battery

Replacement battery for powering compatible huminode IoT devices. When replacing the battery, follow the safety instructions in the user manual.

  • Battery type: Lithium thionyl chloride
  • Rated voltage: 3.6 V
  • Capacity: 9,000 mAh
  • Replacement part for compatible huminode devices
huminode IoT Gateway Mobile Version, Item No. 15364 15364

huminode IoT Gateway Mobile Version

A compact gateway for integrating huminode monitoring into a Wi-Fi network. The gateway receives measurement data from huminode devices and forwards it to the dashboard.

  • For Wi-Fi Integration
  • Power supply via USB-C
  • Alternatively, via a 230-V AC power plug
  • Compact gateway design
huminode IoT Gateway Indoor Version, Item No. 15365 15365

huminode IoT Gateway Indoor Version

Indoor gateway for the continuous transmission of huminode measurement data to the dashboard. Supports flexible network connections, such as Wi-Fi, Ethernet, or LTE.

  • LTE-compatible
  • Wi-Fi or Ethernet (PoE)
  • Slots for TF cards and nano-SIMs
  • Includes power supply and antenna

Request

Request
